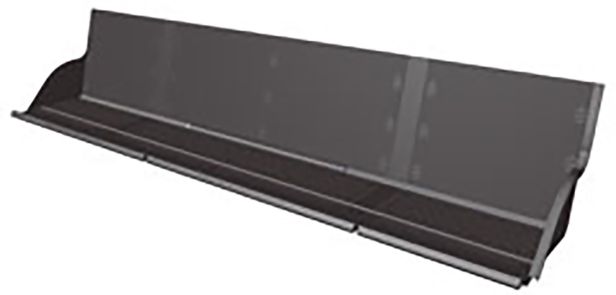

Manthorpe Horizontal Tray 900 x 155mm

Manthorpe's Horizontal Trays are designed for use in horizontal abutment situations and for refurbishment details. The Horizontal Cavity Tray is a 900mm injection moulded tray which incorporates inter-locking stop-ends for ease of fitting. The pull away mortar strips clipped to the front of the tray provide a perfectly chased out slot for quick and simple insertion. Each tray is a self-contained unit to ensure a failsafe system.

Manthorpe Weep Vents or Peep Weeps should be fitted into the brickwork at 450mm spacings to allow the collected water to drain away. The Refurbishment Cavity Tray is a 450mm version of the regular Horizontal Cavity Tray specifically designed for use in refurbishment situations. The trays are retro-fitted by removing three bricks at a time from the existing wall and sliding the tray into position through the gap. The shortened up-stand allows for easy manipulation when sliding the tray into and existing cavity.

The GW296 Internal Corner Tray and GW297 External Corner Tray are used when a Horizontal or Refurbishment run of trays has to turn through a 90° angle. These are easily fixed to the surrounding Horizontal Trays by means of a mastic strip. Simply peel off the wax tape and attach. Depending on the detail it may be necessary to cut down a Horizontal Tray. A GW298/99 Stop-End should be used to terminate a cut-down tray.

• Horizontal abutment trays
• Integral stop-ends
• Removable mortar strip for easy lead application
• Refurbishment trays are available
• Internal & external corners
• Additional handed stop-ends
